Specifications of 60ch 100GHz AAWG Module

Name: Specifications of 60ch 100GHz AAWG Module
Brand: Dawnergy
Price: 1 USD

Buy cheap Specifications of 60ch 100GHz AAWG Module product

Brand Name : Dawnergy

Place of Origin : CHINA

Payment Terms : L/C, D/A, D/P, T/T

Brand : Dawnergy

Optical Fiber Terminations : LC/UPC

Common Fiber Length : L: 500±50

Common Fiber Type : 900μm loose tube G657A2

Package Size : 120*70*10.5

Channel Fiber Type : 900μm loose tube G657A2

Contact Now

Specifications of 60ch 100GHz AAWG Module

1.Application Note

The specifications serve for C-band 100GHz Flat-top MUX/DEMUX in DWDM system.
The AWG module is athermal.

2.Optical Specifications

2.1Optical signal transmission diagram

Specifications of 60ch 100GHz AAWG Module

Figure 1 Optical signal transmission characteristics

2.2Optical Specifications

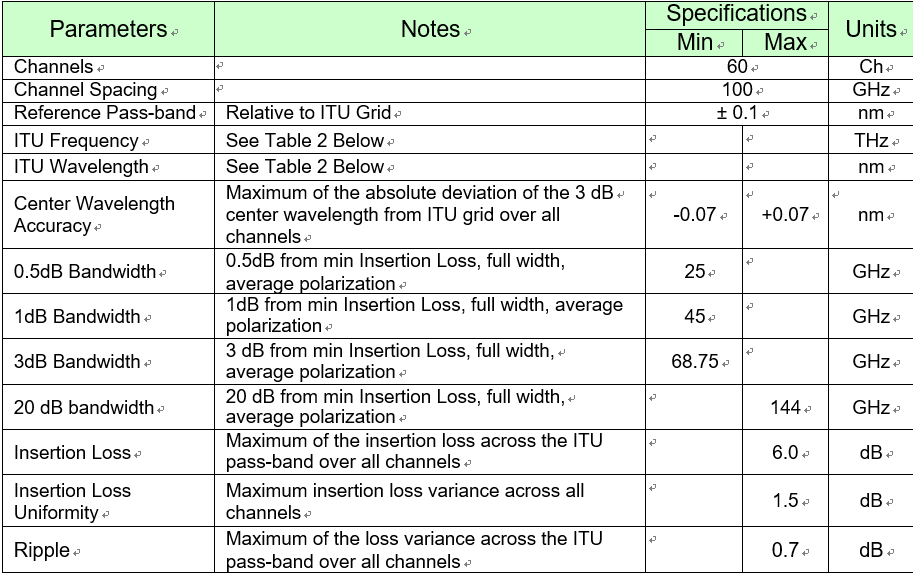

Table 1 Optical Specifications

Specifications of 60ch 100GHz AAWG Module

Connector loss is included.

Table 2 Channel Plan

Type

First Channel

Frequency (THz)

Last Channel

Frequency (THz)

First Channel

Wavelength (nm)

Last Channel

Wavelength (nm)

EVEN

196.6

190.7

1524.885

1572.063

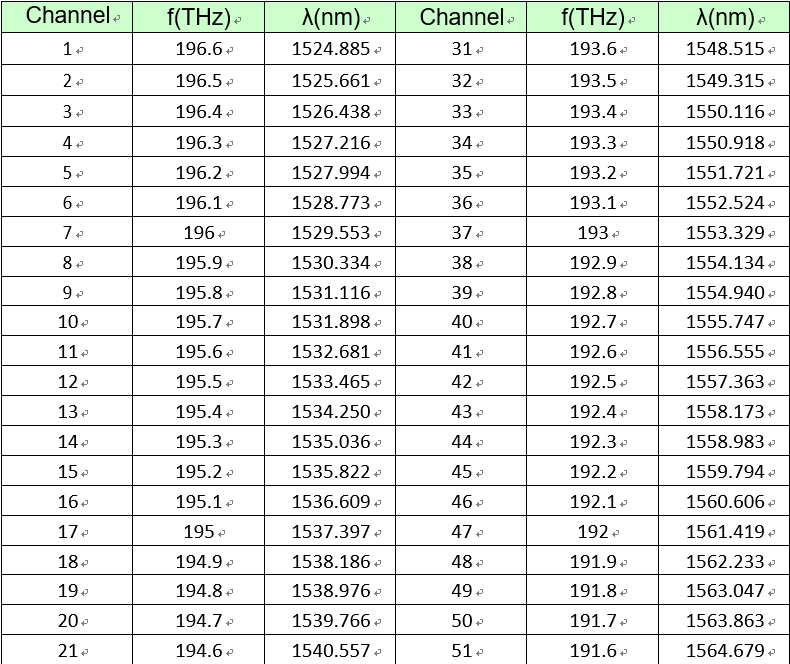

Table 3 Channels List: Passbands for 60 channel AAWG

Specifications of 60ch 100GHz AAWG Module

3.Environmental Conditions and Maximum Ratings

Table 4 Environmental conditions

Parameters	Notes	Specifications			Units
Parameters	Notes	Min	Typ	Max	Units
Operating Temperature		-5		+65	°C
Storage Temperature		-40		+85	°C
Relative Humidity		0		95	%

4.Mechanical Specifications

4.1.Mechanical Drawing

Specifications of 60ch 100GHz AAWG Module

Figure 2 AAWG planar drawing

4.2.Fiber Length

Parameters	Notes	Specifications			Units
Parameters	Notes	Min	Typ	Max	Units
Optical Fiber Terminations		LC/UPC
Package Size	(LWH)	1207010.5			mm³
Common Fiber Length	Including connector	L: 500±50			mm
Common Fiber Type		900μm loose tube G657A2
Fiber from module to fan-out		L1: 500±50			mm
Fiber from fan-out to connectors	Including connectors	L2: 500±50			mm
Channel Fiber Type		900μm loose tube G657A2

Figure 3 AAWG module structure and fiber length illustration

4.3.FANOUT BOX Drawings

Specifications of 60ch 100GHz AAWG Module

Figure 4 Fan-out planar Drawing
